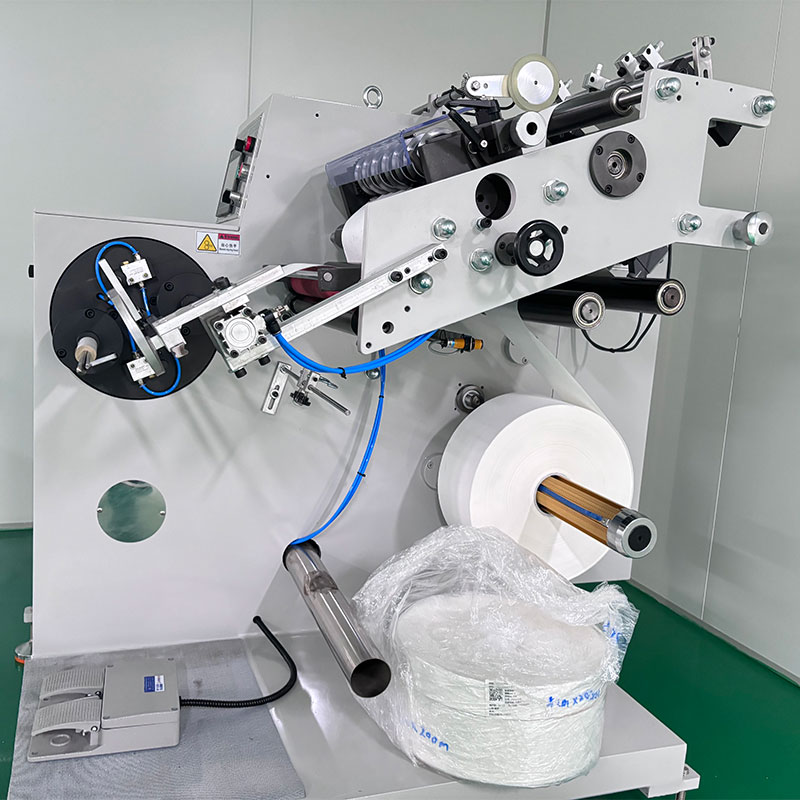

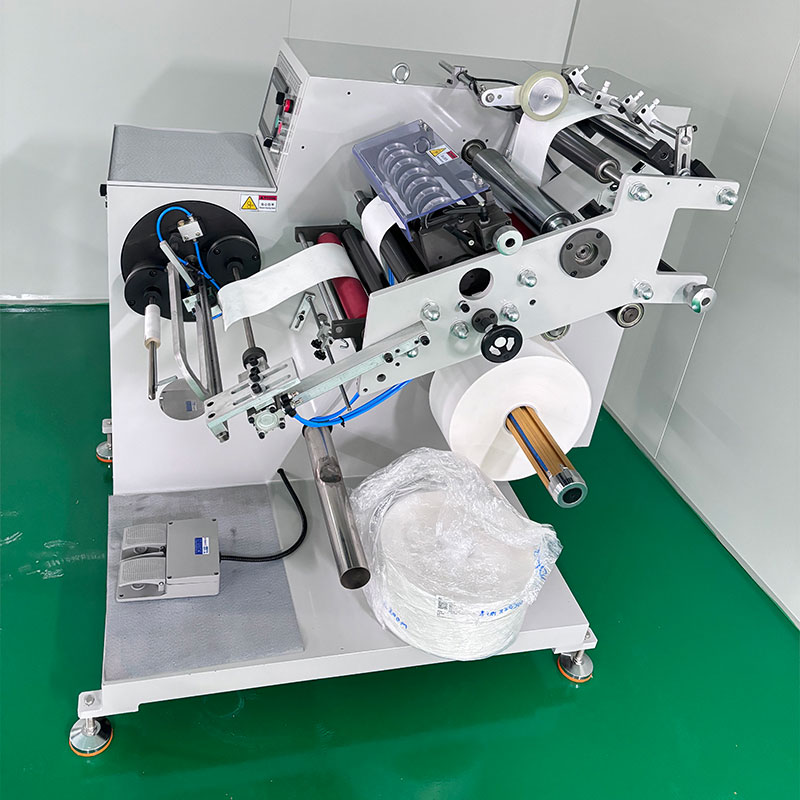

Slitting (Rewinding) machine for medical plaster TPS-320
Fastest slitting speed: 200 m/min
Maximum unwind diameter: 500mm
Maximum winding diameter: 260mm
Maximum feed width: 320mm
Slitting accuracy: ±0.10mm
Total power: 2kw
Supply Voltage: 1P 220V 50HZ
Machine net weight: Approx. 600kg
Machine size (L*W*H): 1350*1050*1250mm
Product Description
1. Main technical parameters of the machine
A.Fastest slitting speed: 200 m/min
B.Maximum unwind diameter: 500mm
C.Maximum winding diameter: 260mm
D.Maximum feed width: 320mm
E.Slitting accuracy: ±0.10mm
F.Total power: 2kw
H.Supply Voltage: 1P 220V 50HZ
I.Machine net weight: Approx. 600kg
G.Machine size (L*W*H): 1350*1050*1250mm
2. Discharge and deflection correction
A. Aluminum Roller
B. Discharge air shaft (automatic inflation and deflation)
C. Two correction electric eyes
D. Correction motor 70w
E. Magnetic particle tension control device
F. Electric eye (paperless stop)
3. Paper feeding section
A.Aluminum Roller
B.Pulling Rubber Roller + Steel Roller
C.Main motor 1.5kw
D.Synchronous belt
E. Platen roller
F. Splicing table
G. Meter wheel
H. Encoder
I. Counters
4. Slitting section
A. Slitting knives (7 sets)
B. Drive gears
C. Drive Synchronous Wheel
5. Slitting waste edge discharge section
A. Exhaust fan 330W (150FLJ17)
B. Exhaust ducts
6. Double-receiving section
A. Shaft change device B. Magnetic powder tension control device
C. Winding spools (2 pcs.) (can be inflated and deflated automatically) (Maximum support for winding diameter 260mm)
D. Optional configuration: can wind 0.5 inch (12mm) paper tube
1. Steel shaft 2 pcs. 2. Cylinder (to prevent the steel shaft from shaking)
3.Synchronous wheel 4.Belt wheel
7. Installation of additional rewinding shaft (maximum rewinding diameter 500mm) (optional)
A. reel
B. Magnetic particle tension control device
C. synchronous belt pulley
8. Electronic control section
A.Control PLC
B.Touch Screen
C. Speed control inverter 1.5kw
9. Sheet metal, cowling and other parts
10. Other
A. Toolbox
B. Instruction manuals

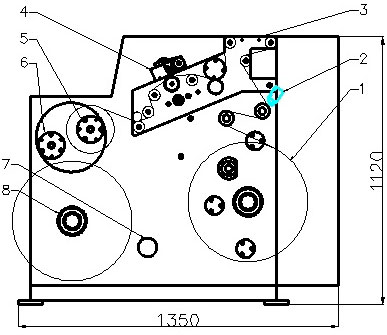

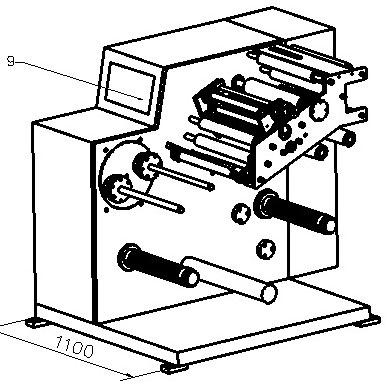

11. Machine structure schematic
1.Unwinding air-rise shaft (max. unwinding diameter 500mm)Air swelling shaft
2.Devices for correcting deviations
3.Paper Splicing Platform
4.Slitting device
5.Winding up the air shaft l
6.Winding up the air shaft ll
(When the winding shaft is 1 inch: Maximum diameter of winding 300mm)
(When the winding shaft is 1.5 inches: Maximum diameter of winding 290mm)
(When the winding shaft is 3 inches: Maximum diameter of winding 260mm)
7.Waste removal devices
8.Rewinding air shaft (optional configuration) (rewinding the maximum diameter of 500mm)
9.Control Panel
